l  Operation Voltage: 1.8V to 5.5V

l  Average Operating Current: 5.5uA (Typ.)@ 3.3V, 1Con/s for Both temperature and humidity Conversion

l  Standby Current: 0.36uA(Typ.)

l  Temperature Accuracy with calibration:

±0.1℃(Typ.), ±0.2℃(Max.)from 20℃  to 50℃

±0.2℃(Typ.), ±0.5℃(Max.)from 0℃  to 100℃

±0.3℃(Typ.), ±0.8℃(Max.) from -40℃  to 125℃

l  Humidity Accuracy with calibration:

±2.0%RH(Typ.),±4.0%RH(Max.) from 20%RH to 80%RH

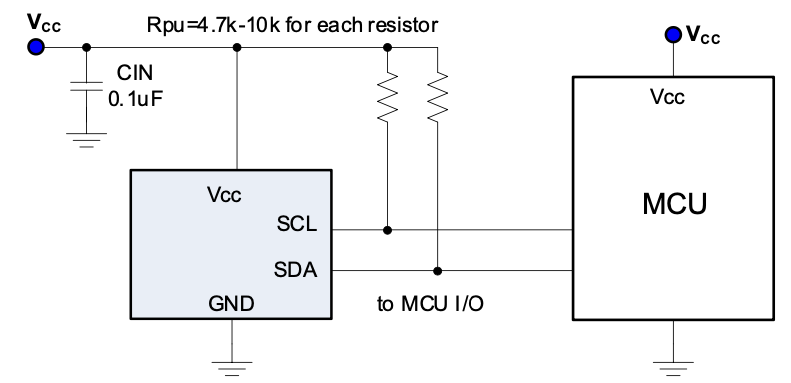

l  Digital Interface compatible with SMBus and I2C, support:

Packet Error Checking feature to improve communication reliability and robustness

Speed up to 1.0MHz

SMBus General Call

l  Supports One shot or continuous measurement

l  NIST traceability

l  Temperature Range: -40℃ to 125 ℃

l  Humidity Range: 0%RH to 100%RH
