Operation Voltage: 3.0V to 5.5V
Operating Current: 38uA during Temperature conversion;
Average Consumption Current: 1.5uA (Typ.) with reading once temperature per second
Standby Current: 100nA (Typ.), 1000nA (Max.)
Temperature Conversion time: 30ms at 12-bit
Temperature Accuracy without calibration: ±0.5oC(Max.) from -10°C to 80°C
12 bit ADC for 0.5°C resolution
Compatible with 1-wire interface
Temperature Range: -50°C to 125°C
Package: TO-92
- CT1820S 展开全部
-
产品概述CT1820S is a digital temperature sensor with ±0.5°C (Max.) accuracy over -10°C to 80°C. Temperature data can be read out directly via Single-Wire interface (compatible with 1-wire bus in protocol) by MCU.
-
产品特性
-

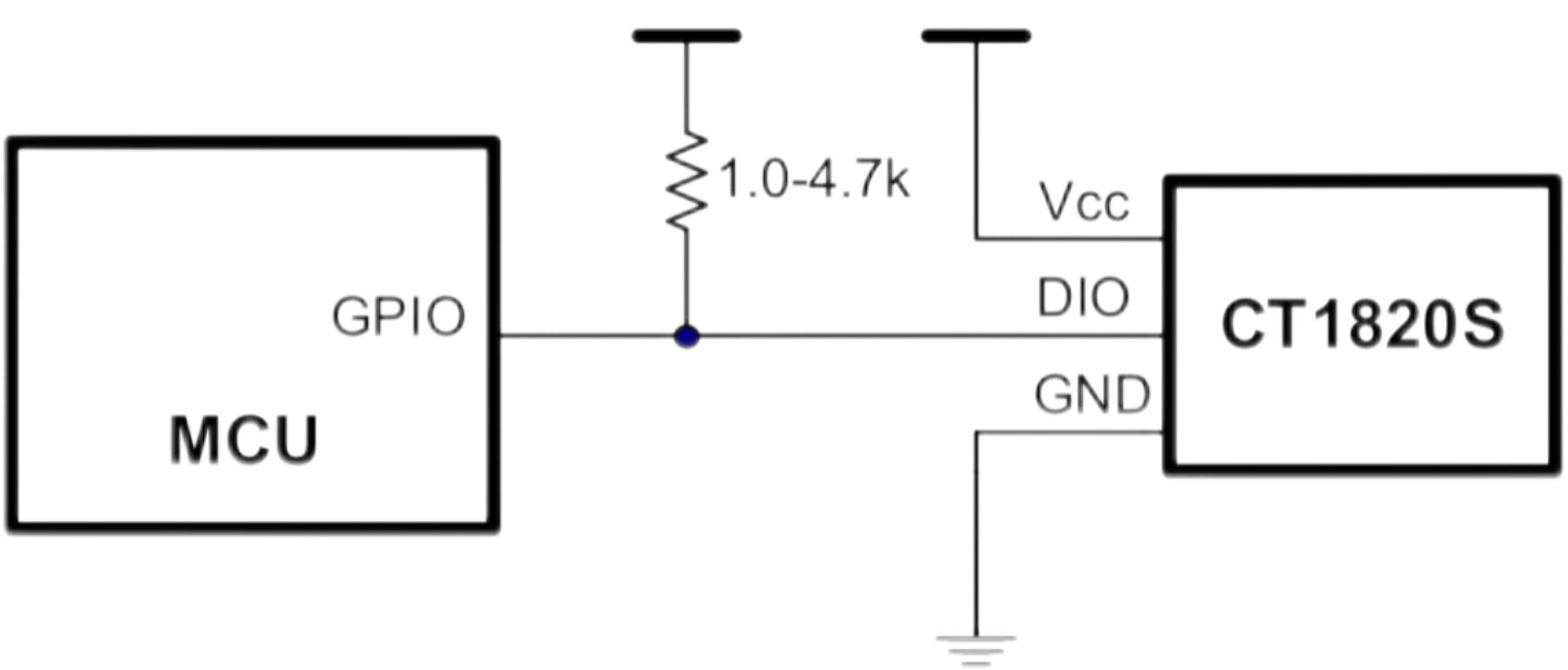

典型应用
-

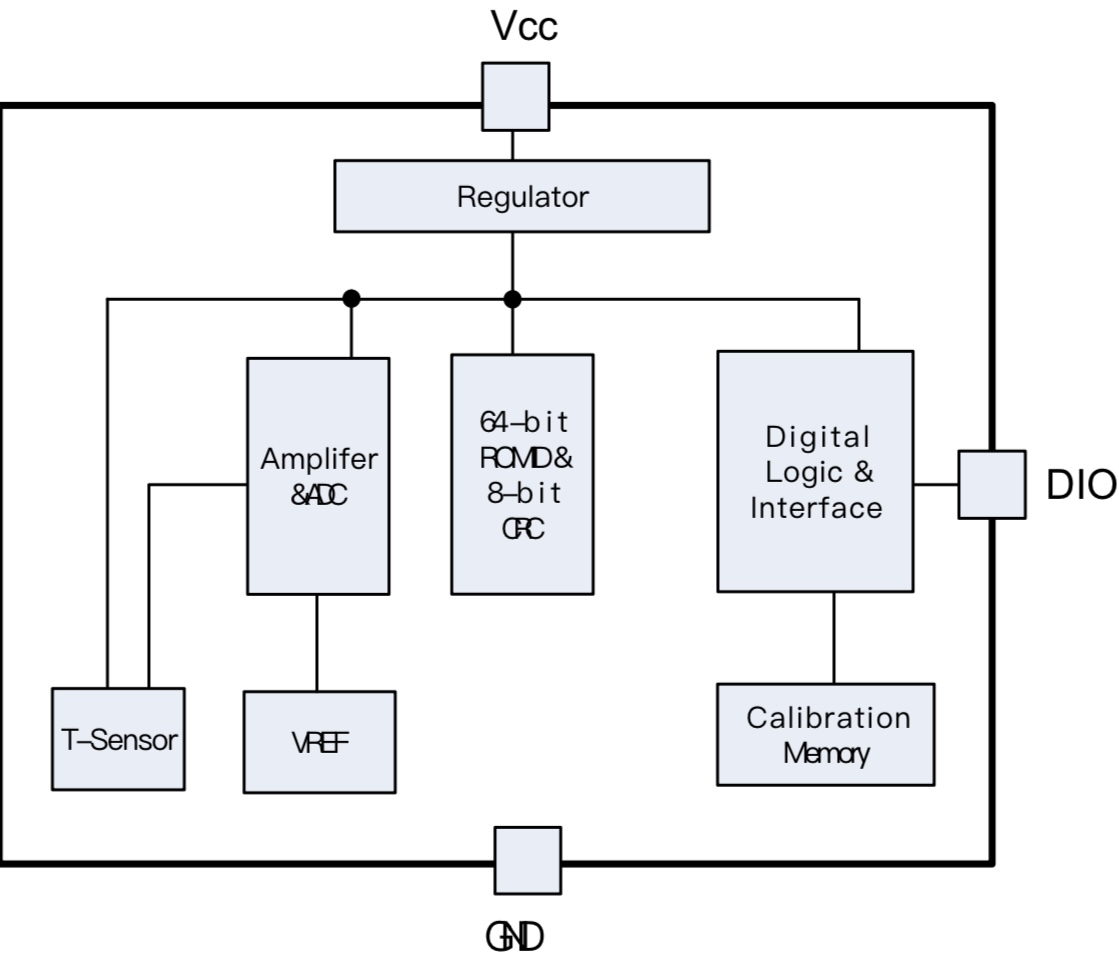

功能框图
-

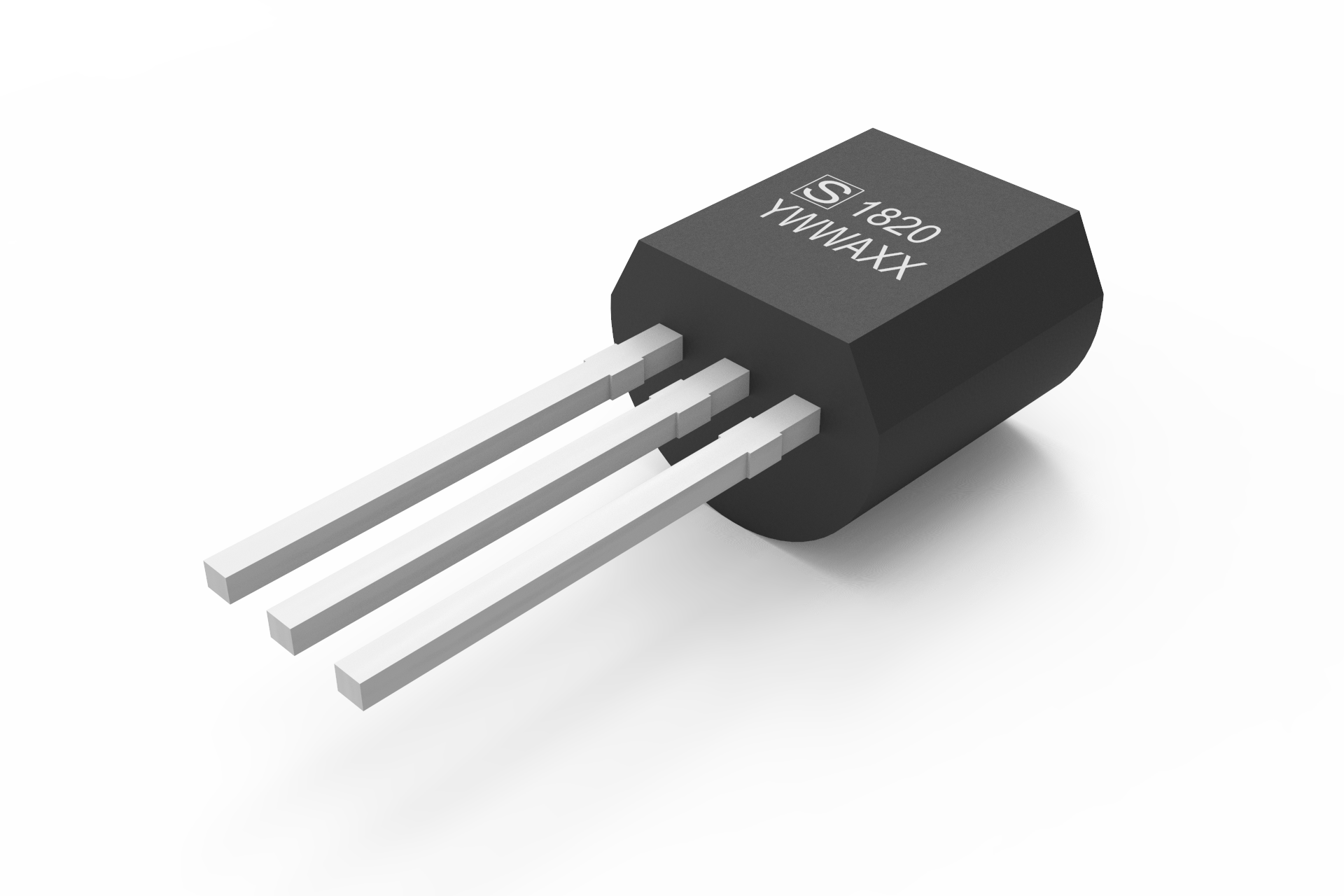

封装
TO-92
-
技术文档
-
样片及订购
Order PN
Accuracy
Green1
Package
Marking ID2
Packing
MPQ
Operation Temperature
CT1820SZ
±0.5oC
Halogen free
TO-92
1820S
YWWAXX
Bulk
1,000
-50oC~+125oC
CT1820SZA
±0.5oC
Halogen free
TO-92
1820S
YWWAXX
AMMO
2,000
-50oC~+125oC
